Laser Cut Stencils at the Push of a Button

  • Perfect framed and frameless stencils
  • Easy handling
  • Micromachining capability

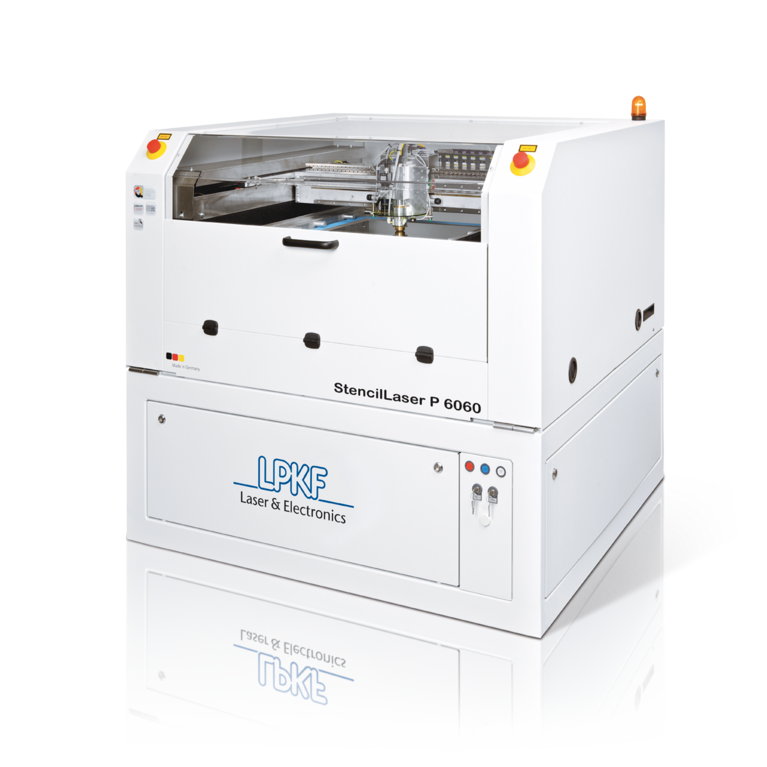

LPKF StencilLaser P 6060

LPKF StencilLaser P 6060

Lowest investment costs for laser cutting of SMT stencils

The LPKF StencilLaser P 6060 is a state-of-the-art laser system for the production of SMT stencils. It combines a space-saving design with ease of operation. The LPKF StencilLaser P 6060 is the most affordable system on the market due to its high cutting speeds and extremely low operating costs.

State-of-the-Art Laser Technology

Easy to operate

The cutting process can be started in just a few simple steps: select the correct frame from the library, insert the stencil, select the job and press Start - all controlled from one screen.

High flexibility

The LPKF CircuitCAM software allows design specifications to be stored and used for global modifications of aperture shapes and sizes. Each customer can have their own templates created and recalled as needed. The engraving of data matrix codes, part numbers or company logos on both sides of the stencil can be programmed quickly and easily.

Low operating costs

The long-life LongLife fiber laser technology avoids the regular replacement of expensive lamps. The complete system consumes less than 1,500 VA and thus minimizes energy costs.

Plug & Play

The LPKF StencilLaser P 6060 represents the LPKF "StartLine", is quick to set up, does without water cooling and power connections. The system is up and running in no time at all: Connect (115 V or 230 V), set it up for operation and the first stencil can be produced. With its small basic dimensions of less than 2 m², the system even fits into tight spaces.

Technical Data

StencilLaser P 6060
Cutting range600 mm x 600 mm (23.6" x 23.6")
Max. frame size740 mm x 950 mm x 40 mm (29.1" x 37.4" x 1.6")
Max. material thicknessup to 200 µm (standard) / up to 600 µm (optional)
Axial precision+/- 4 µm
System dimensions (W x H x D)1400 mm x 1400 mm x 1450 mm (55" x 55" x 57")
Weightca. 1200 kg

 Downloads

Broschure
Always a Cut Ahead - LPKF StencilLaser Equipment (pdf - 2 MB)
Download
Brochure
LPKF StencilLaser P 6060 (pdf - 724 KB)
Download

Further LPKF StencilLaser Systems

[Translate to USA:] StencilLaser LPKF MicroCut 6080

The new benchmark for extremely small apertures in stencil sheets.

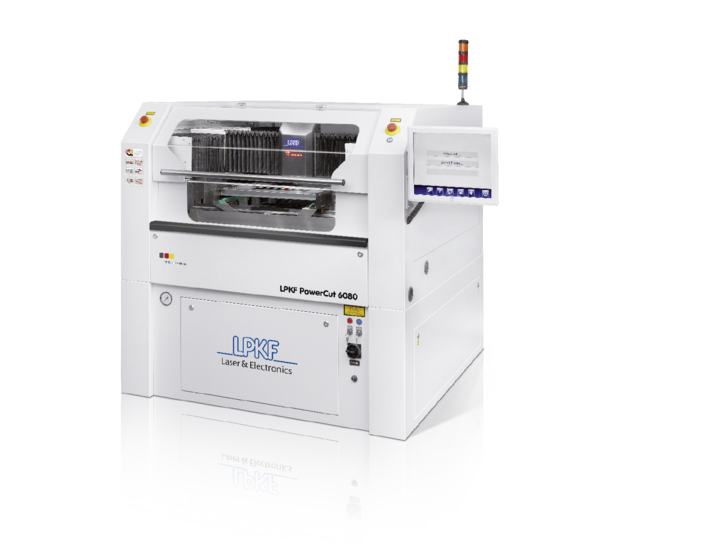

[Translate to USA:] StencilLaser LPKF PowerCut 6080

Cuts metal sheets up to 4 mm (150 mil) thick with micrometer accuracy.

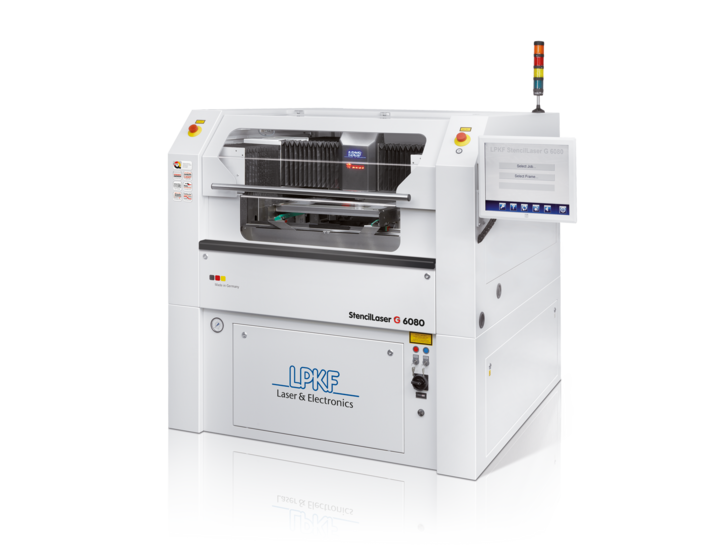

[Translate to USA:] LPKF StencilLaser G 6080
