The LPKF Circuit Board Plotters
Reliable, powerful and compatible

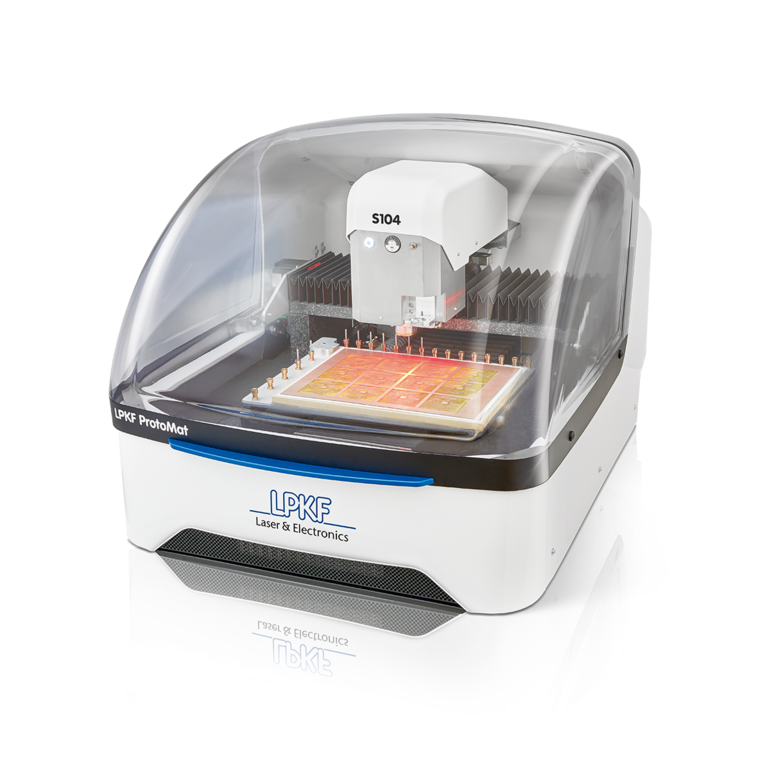

The LPKF ProtoMats set the standard worldwide in precision, flexibility and user-friendliness. The LPKF circuit board plotters are simply indispensable for the fast in-house production of printed circuit boards, whether for single boards for development projects or small series. They are ideally suited for high performance, analog, digital, RF and microwave applications. Made in Europe: LPKF circuit board plotters have been considered the benchmark for milling, drilling and contour milling of PCBs for more than four decades.
Versatile software
All LPKF structuring systems are supplied with a comprehensive software package, optimized for easy operation, highest quality and fast results. LPKF CircuitPro imports all common CAD data and transfers the production data to the structuring systems.
Comparison LPKF ProtoMat circuit board plotters
| Application | E44 | S64 | S104 |
|---|---|---|---|
| Milling / Drilling of 1- & 2-sided circuit boards | • | • | • |
| Milling / Drilling RF-, Microwave-Substrates | - | • | • |
| Milling / Drilling of multilayers up to 8 layers | • | • | • |
| Routing of printed circuit boards | • | • | • |
| Engraving of front panels / signs | - | - | • |
| Milling cut-outs in front panels | • | • | • |
| Milling of SMD solder paste stencils | - | • | • |
| Machining of housings | - | • | • |
| Milling of solder frames | - | • | • |
| Depaneling, reworking of printed circuit boards | - | • | • |
| Drilling of test adapters | - | • | • |
| Inspection templates | - | • | • |
| Dispensing | - | • | • |
