PCB structuring

The faster way to create circuit boards

Mechanical or laser systems enable single-sided and double-sided PCBs, multilayers, high-capacity circuits, RF and microwave PCBs, and rigid and flex PCBs to be manufactured – thus offering exciting options for electronic products.

Milling the conductor pattern

1- & 2-sided PCBs and multilayers

Mechanical and laser systems selectively remove the copper layers on single- and double-sided circuit boards, thereby creating insulating channels that precisely delineate the required conductive traces and pads. The circuit board plotters also drill all the necessary holes in the boards.

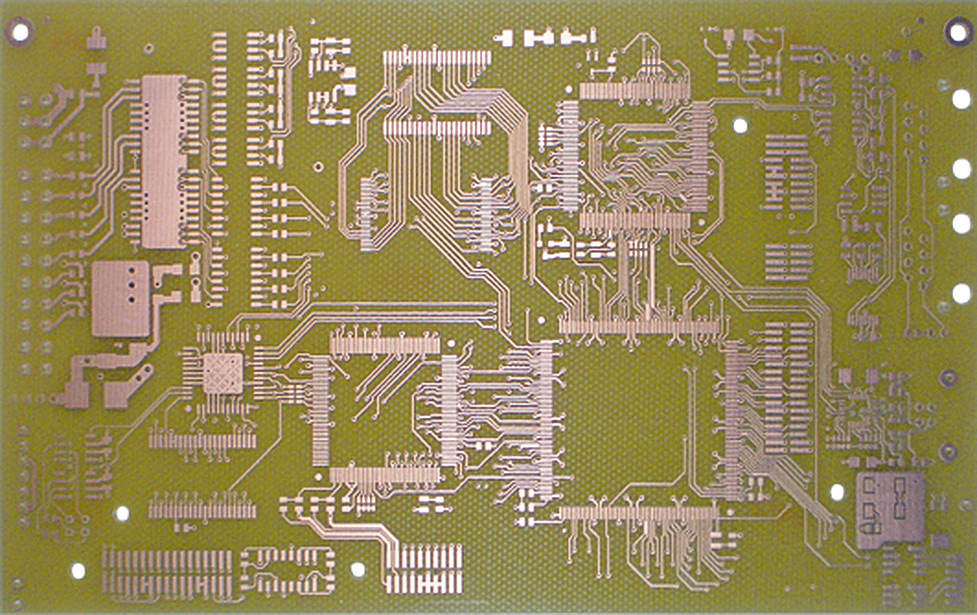

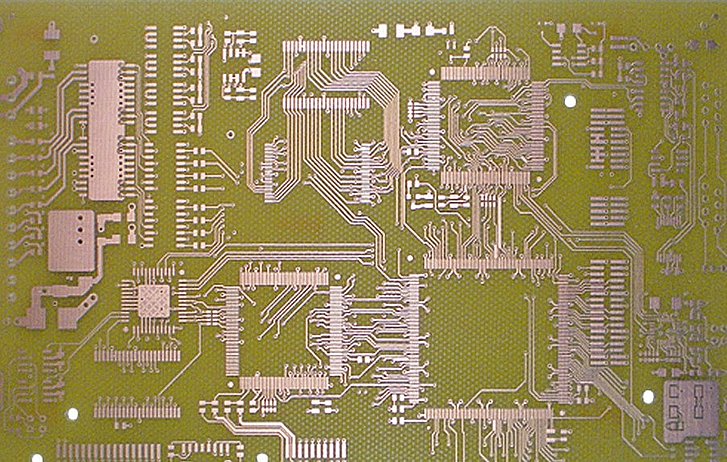

PCB prototype -- milling time 30 minutes

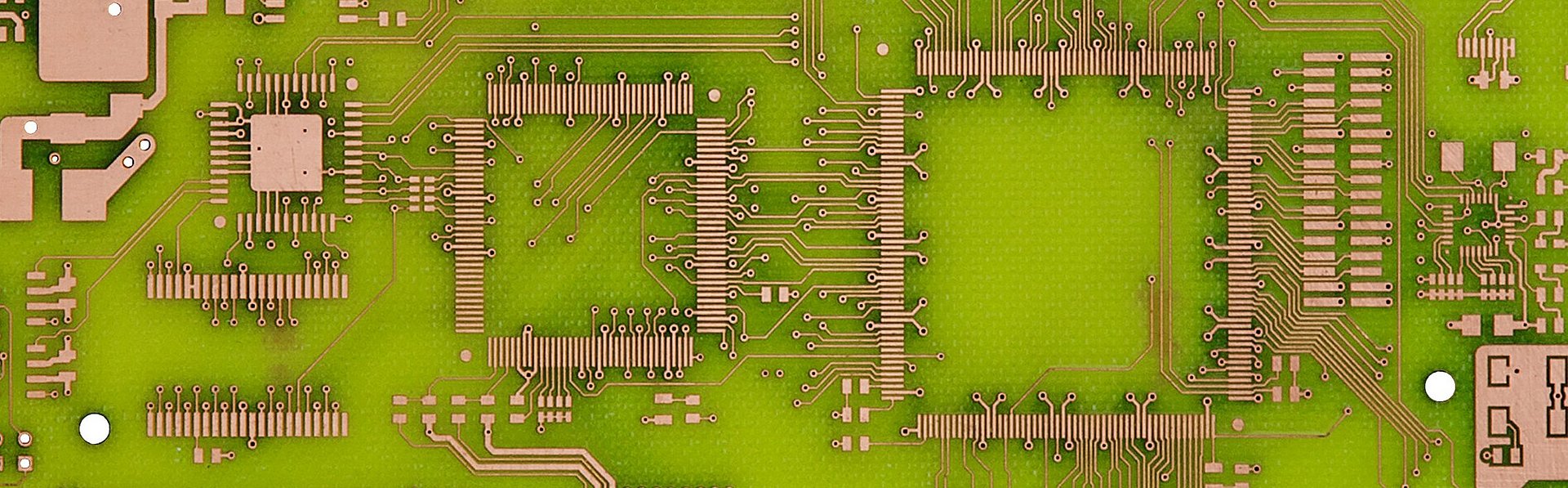

4-layer multilayer, top layer, complete rubout

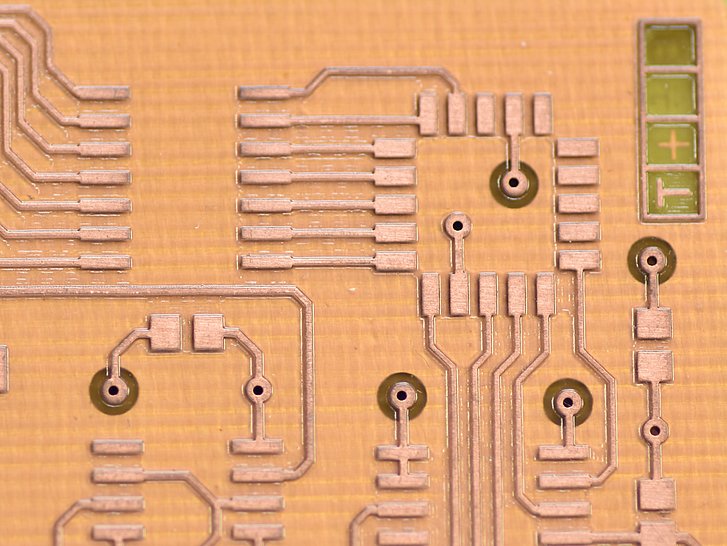

Microscopic view of analog circuitry on FR4 material

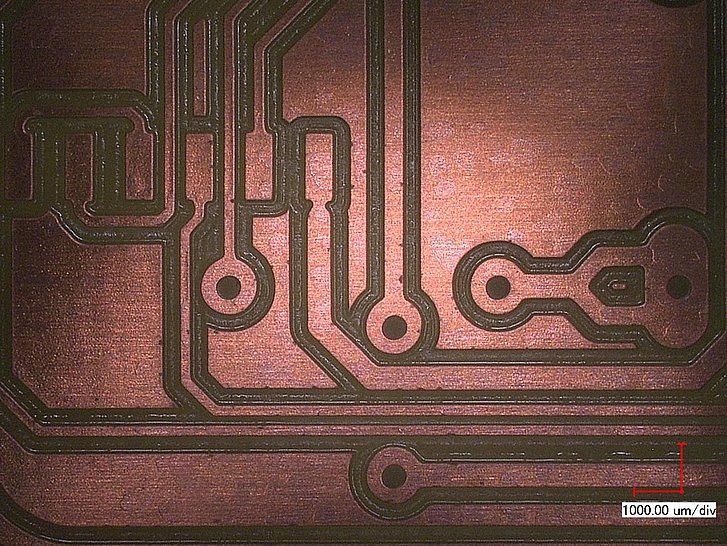

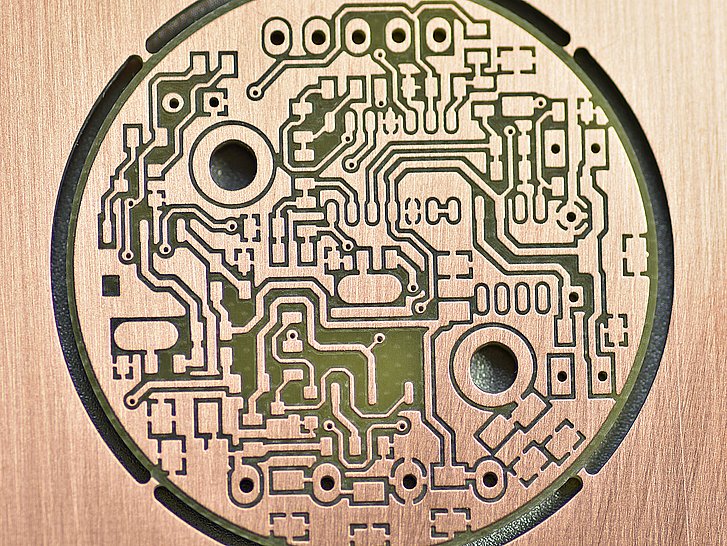

Analog circuit on standard FR4 35 microns Cu, including dill holes and contour cut

Circuit Board Plotter LPKF ProtoMat >

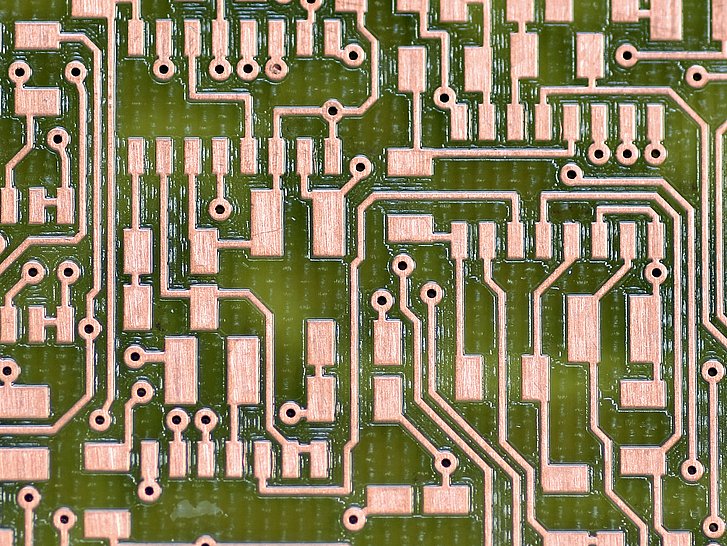

Circuitry on FR4 material, including rubouts and galvanic through hole plating

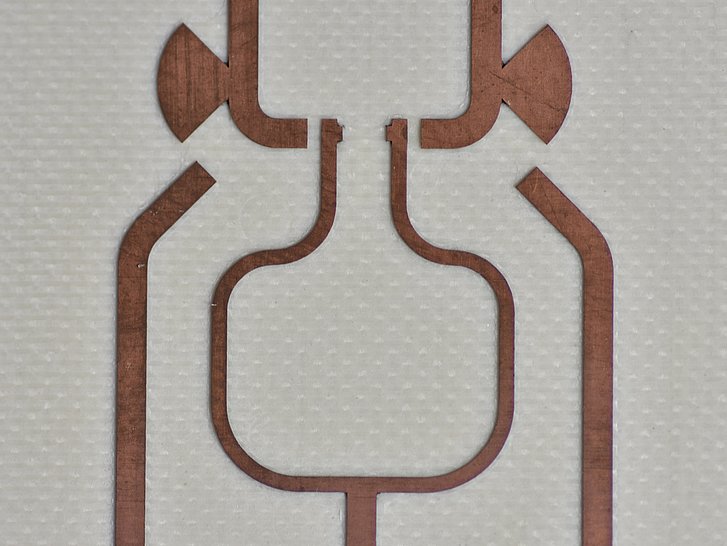

RR circuitry

Learn more about LPKF circuit board plotters

PCB structuring with the laser

1- & 2-sided PCBs and multilayers

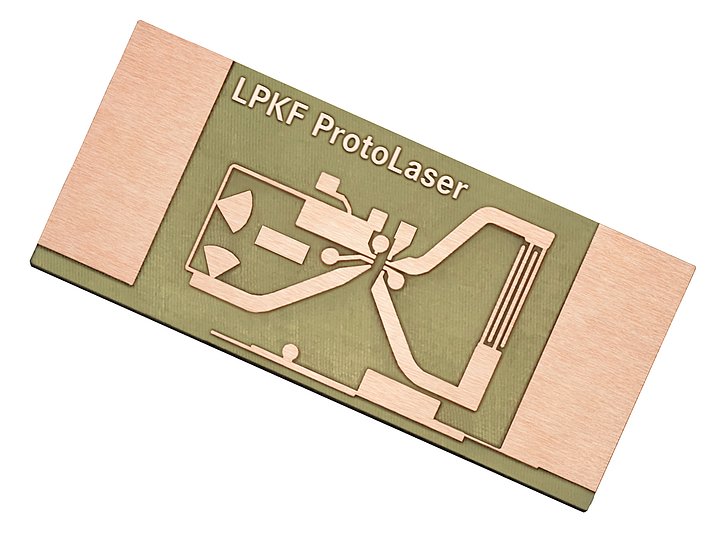

Laser structuring implements conductive paths even faster and more accurately than mechanical methods do. It places exact geometries on various substrates such as copper-clad FR4, aluminized PET film, ceramics, duorid or PTFE.

Learn more about LPKF ProtoLasers
